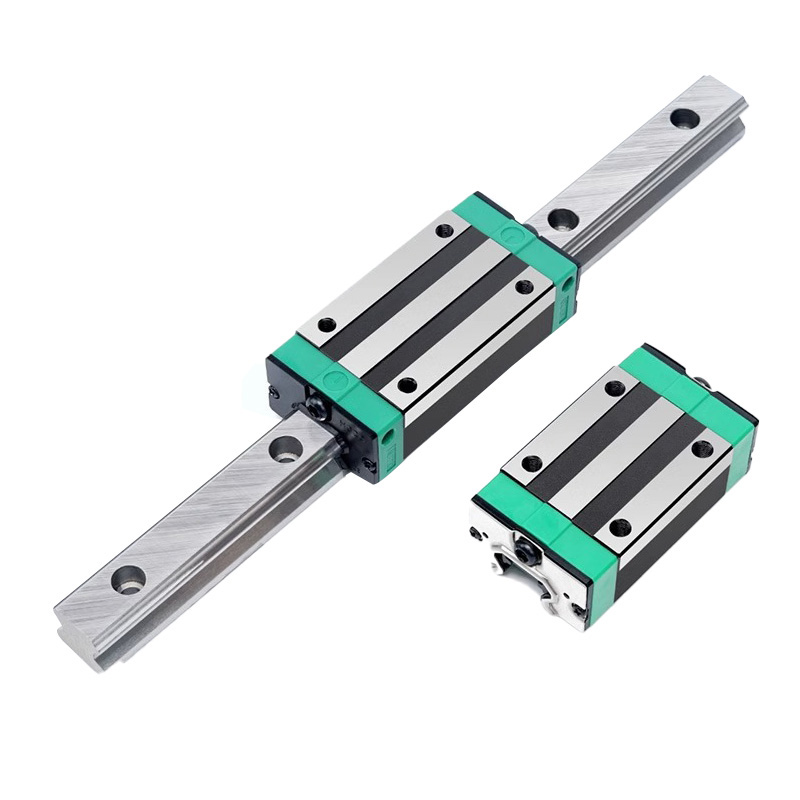

GHW Series Linear Guide
This type of product is designed specifically for ultra smooth linear motion. The GHW series linear guide has high precision, high rigidity, and durability characteristics, and is designed for use in high-performance automation equipment and CNC machining applications.
- High load-bearing capacity – supporting heavy loads with minimal deformation
- Ultra high precision – positioning accuracy up to ± 0.001mm
- Ultra long lifespan – advanced sealing technology effectively prevents dust and can extend the service life
- High speed stability – supports 5m/s fast movement without vibration
- Environmental adaptation – optional anti-corrosion model, suitable for harsh environments
Healthcare partnerships
Product Description

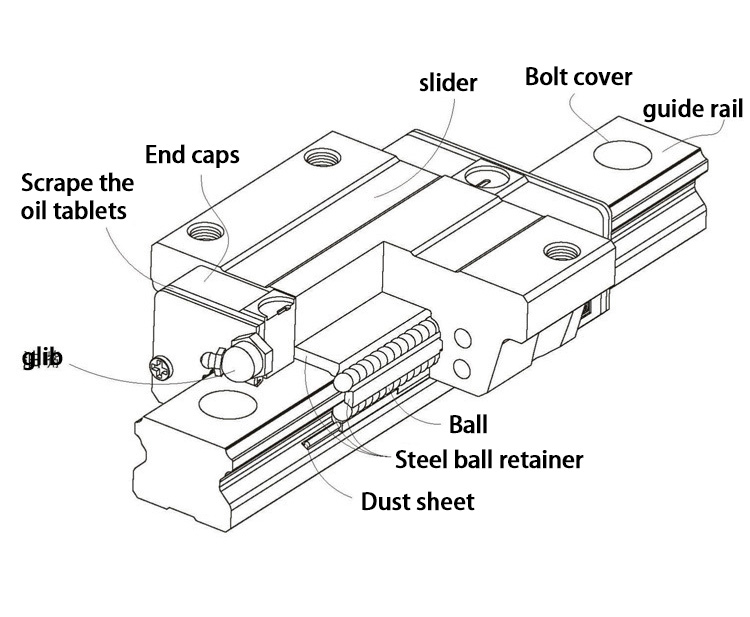

The GHW series linear guide is our flagship product, which adopts German precision process quality control standards and is designed specifically for high-end CNC equipment and automated production lines. This series of products adopts an innovative four row bead 45 ° contact angle design, which increases the load capacity to 1.8 times that of traditional guide rails while maintaining ultra-high precision. The axial rigidity is increased by 30%, perfectly solving the vibration and deformation problems in high-speed and high-precision machining.
The unique dual lip contact sealing system integrates a labyrinth dustproof structure, with a protection level of IP67, which can effectively resist the erosion of metal debris and cutting fluid, especially suitable for harsh environments such as five axis machining centers and precision grinders.
Product materials
Stainless Steel
Aluminum Alloy
Steel
Copper
Titanium Alloy
we’re here to all your questions
We believe you have many questions to ask us, and we will answer them one by one here, and hope you will be satisfied.
Q1: Are you a factory or trading company?
A: We are a manufacturing factory with 14 years of production experiencewe can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A: Strict 3-stage quality control system to ensure product consistency:
1. Raw Material Inspection
All incoming materials are tested for compliance with international standards.
2. In-Process Monitoring
2.1. QC inspectors conduct real-time checks at each production phase (e.g., molding, assembly, painting).
2.2. Key parameters (e.g., dimensions, tolerance, functionality) are recorded using digital tools to minimize human error.
3. Final Product Audit
3.1. 100% visual inspection for appearance defects (scratches, stains, misprints).
3.2. Random sampling for functional tests and dimension test.
3.3. Each batch is accompanied by a QC report before packaging.
Q3: When can I get the price?
A: 24 hours.
Q4: What are the way of the shipment?
A: We have some long-term and stable cooperative freight forwarding company, which can provide different shipment modes as per your needs:
Air: DDU terms by express (DHL, FedEx, UPS, etc.);
Sea: CIF/DDU/DDP services
related products

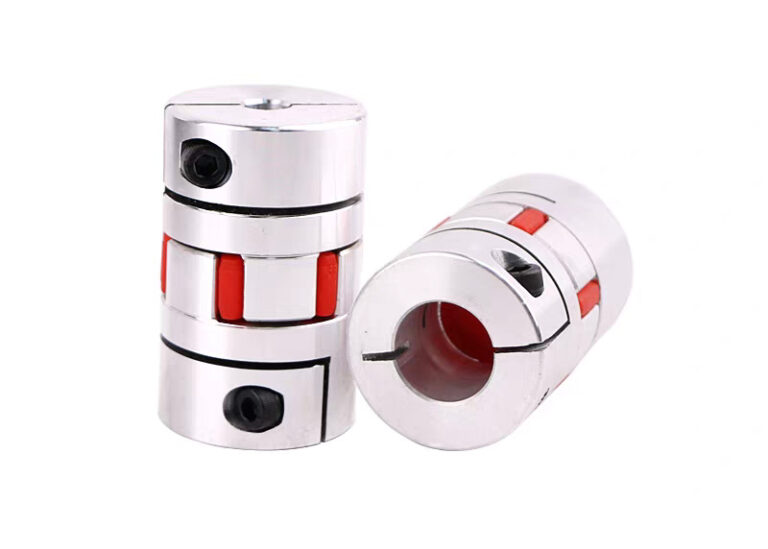

Plum Shaft Coupling
DSR's star coupling is dimensionally accurate with an H6 tolerance on the inner hole, ensuring that the product's precision meets

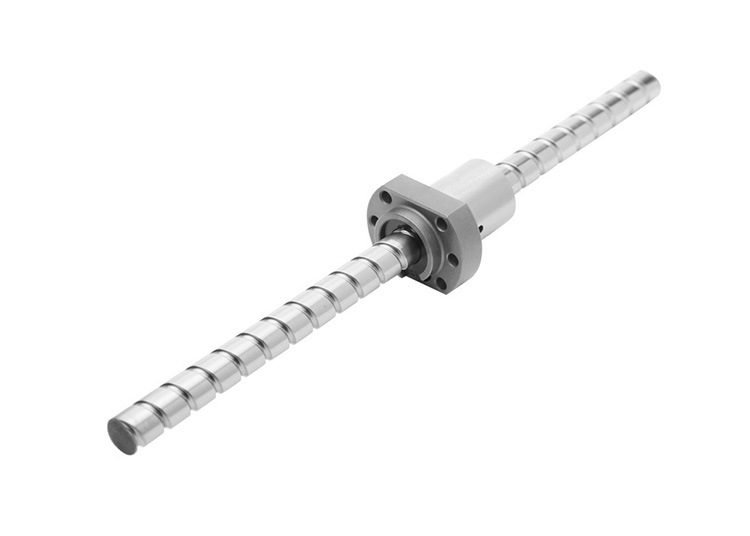

SFU Series Ball Screws
DSR's SFU series ball screws are made of high-quality alloy steel. Our products are precision ground and heat treated, and

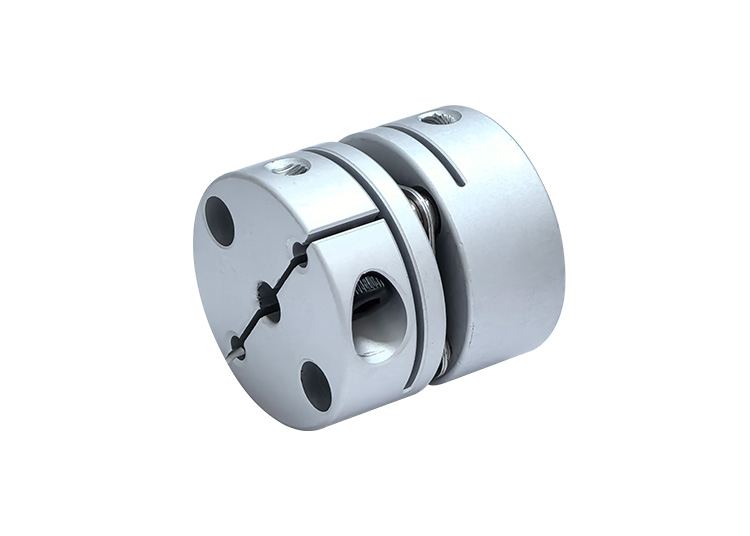

DS/DL Aluminum Alloy Shaft Coupling
Our DS/DL aluminum alloy shaft coupling are made of high-strength aviation aluminum and are designed specifically for servo motors, stepper

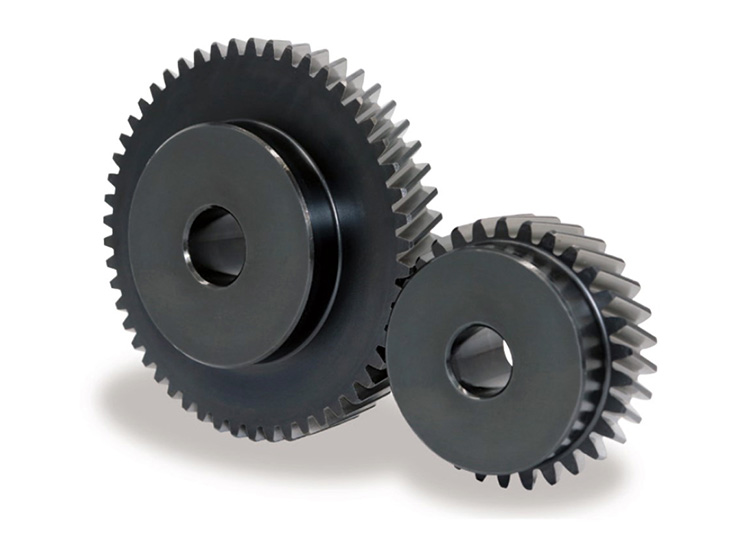

45 # Steel Precision Gear
